AWS Architecture Overview

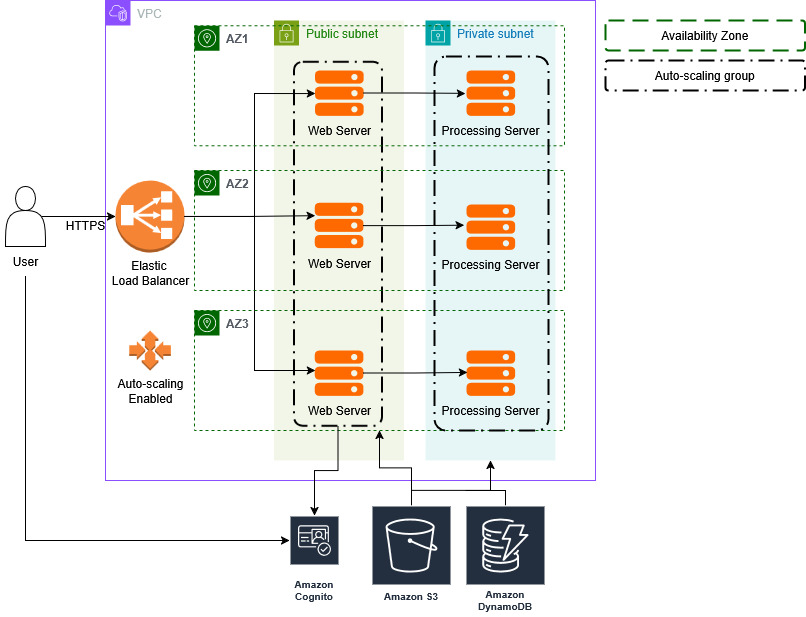

This diagram outlines the backend architecture of the Delve application, focusing on scalability, security, and ease of use.

AWS Architecture

High-Level Flow

  1. User Access:
    • Users connect to the application over HTTPS, ensuring secure communication.
    • The traffic is first routed to an Elastic Load Balancer (ELB), which balances the workload across multiple instances to provide scalability.
  2. Authentication:
    • Upon visiting the application, users will sign up or log in.
    • AWS Cognito will handle user authentication, validating their identity and issuing access tokens.
    • These access tokens are used to grant users access to their specific data and reports stored in the DynamoDB database.
  3. Data Access & Retrieval:
    • When users request a specific report, the web server fetches the relevant data from DynamoDB.
    • For users requesting downloadable files (such as SBOMs or detailed reports), files are served directly from the S3 Bucket.
  4. Data Submission & Processing:
    • Users can submit application source code, containers, or SBOMs to the platform.
    • These submissions are sent to the backend processing server through an Express API running on the server.
    • The user ID is passed along with the data to ensure proper association with their account.
  5. Data Storage:
    • After the backend processes the user-submitted data (e.g., generating SBOMs and vulnerability reports), the resulting input and output files are saved in S3 for storage.
    • The DynamoDB database is updated with an entry containing metadata about the processed data, such as the generated SBOM and vulnerability report.
  6. User Dashboard:
    • Users can access a comprehensive dashboard that displays the dependencies within their applications, helping them monitor and manage their software’s security.
    • The dashboard allows users to easily identify vulnerabilities, outdated components, and take necessary actions to maintain their applications.
